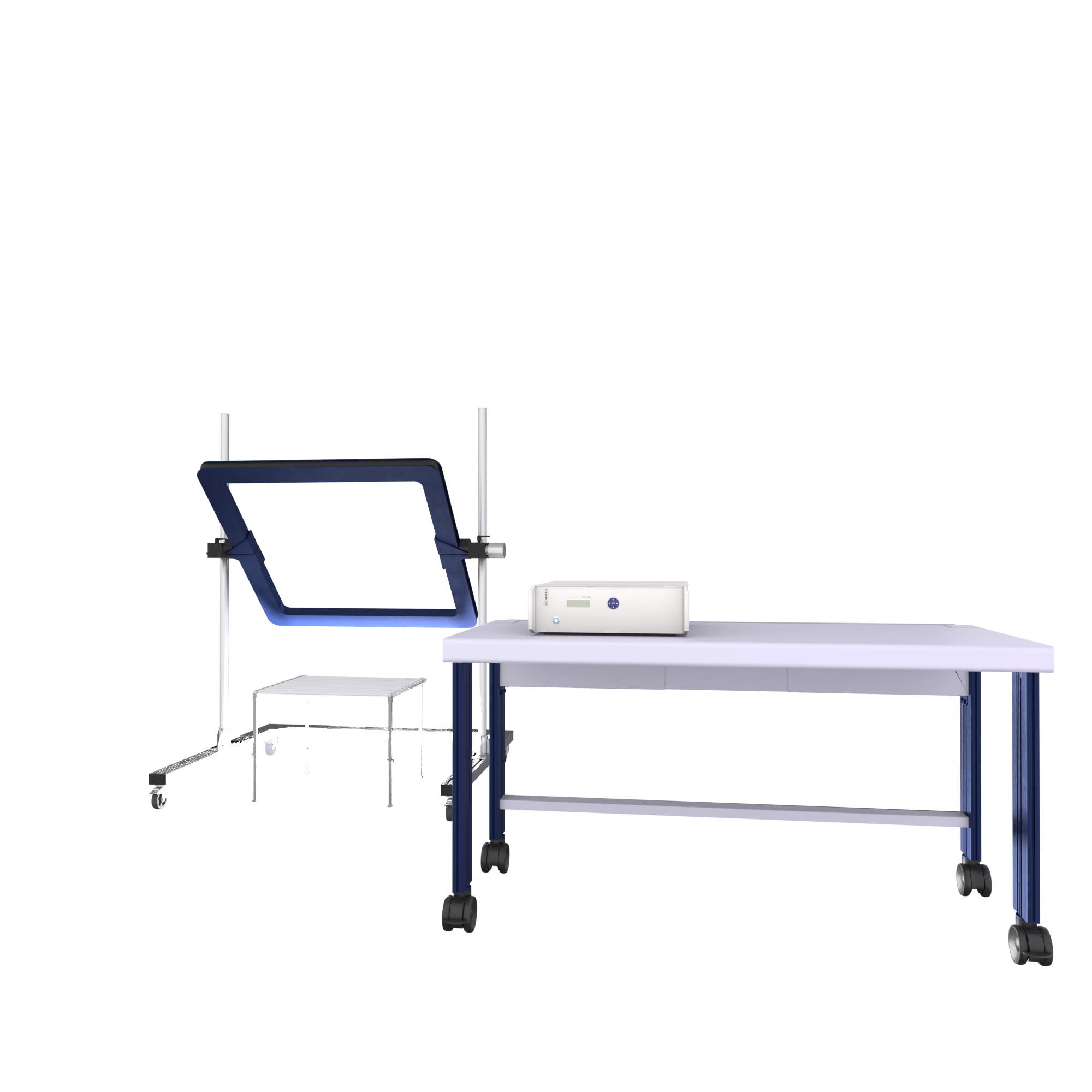

The MAG 1000 is to be used for EMC TESTS requiring AC Magnetic Fields. Power frequency magnetic fields are generated by AC current flowing in conductors. The normal 50/60 Hz power cord is a good example, although currents with other frequencies may be present, dependent on the application.

The MAG 1000 contains an internal power supply making this system a stand-alone solution.
The magnetic field strength is defined at the center of the coil with 3dB variation. Coil dimensions define the maximum EUT size as being 0.6m x 0.6m x 0.5m.

The MAG 1000 can be used for both vertical and horizontal plane testing, by simply rotating the coil antenna in its mounting on the included stand. The MAG 1000 can be used for both short duration and continuous mode testing, it is fully compliant with IEC 61000-4-8.

The MAG 1000 includes a 1m x 1m square, 90 turns antenna for the field generation.

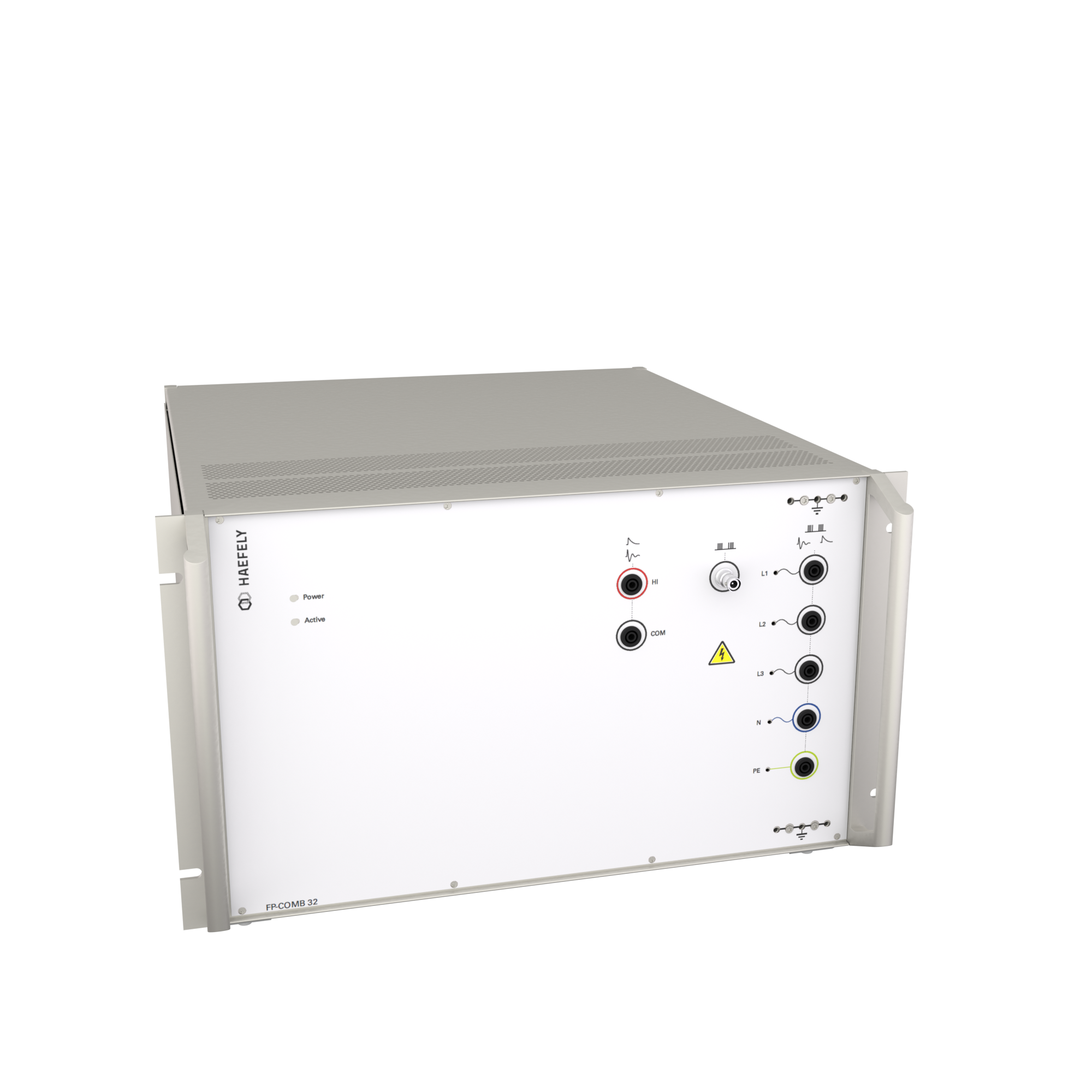

The FP-COMB 32 coupling/decoupling network – for Surge Combination Wave, Ring Wave and EFT/Burst – is fully compliant with the standard requirements of IEC/EN 61000-4-4, IEC/EN 61000-4-5 and IEC/EN 61000-4-12.

The FP-COMB 32 is controlled by the AXOS5 / AXOS8 expandable immunity test system(s). The CDN automatically changes the coupling paths, phase angles and source impedance based on test parameters set by the user via the AXOS controller – depending on the standard and coupling mode.

The FP-COMB 32 was designed to reduce residual voltage levels at the EUT mains input by integrating the proper decoupling inductors for each type of CDN application in order to meet the requirements (with regard to voltage drop at the rated current). Apart from covering the EN/IEC 61000-4-5 standard, the FP- COMB 32 also covers tests to meet surge requirements outlined in ANSI/IEEE C62.41.

Voltage dips and short interruptions are caused by faults in the network, primarily short circuits, in installations or by sudden large changes of load. In certain cases, two or more consecutive dips or interruptions may occur. Voltage variations are caused by continuously varying loads connected to the network.

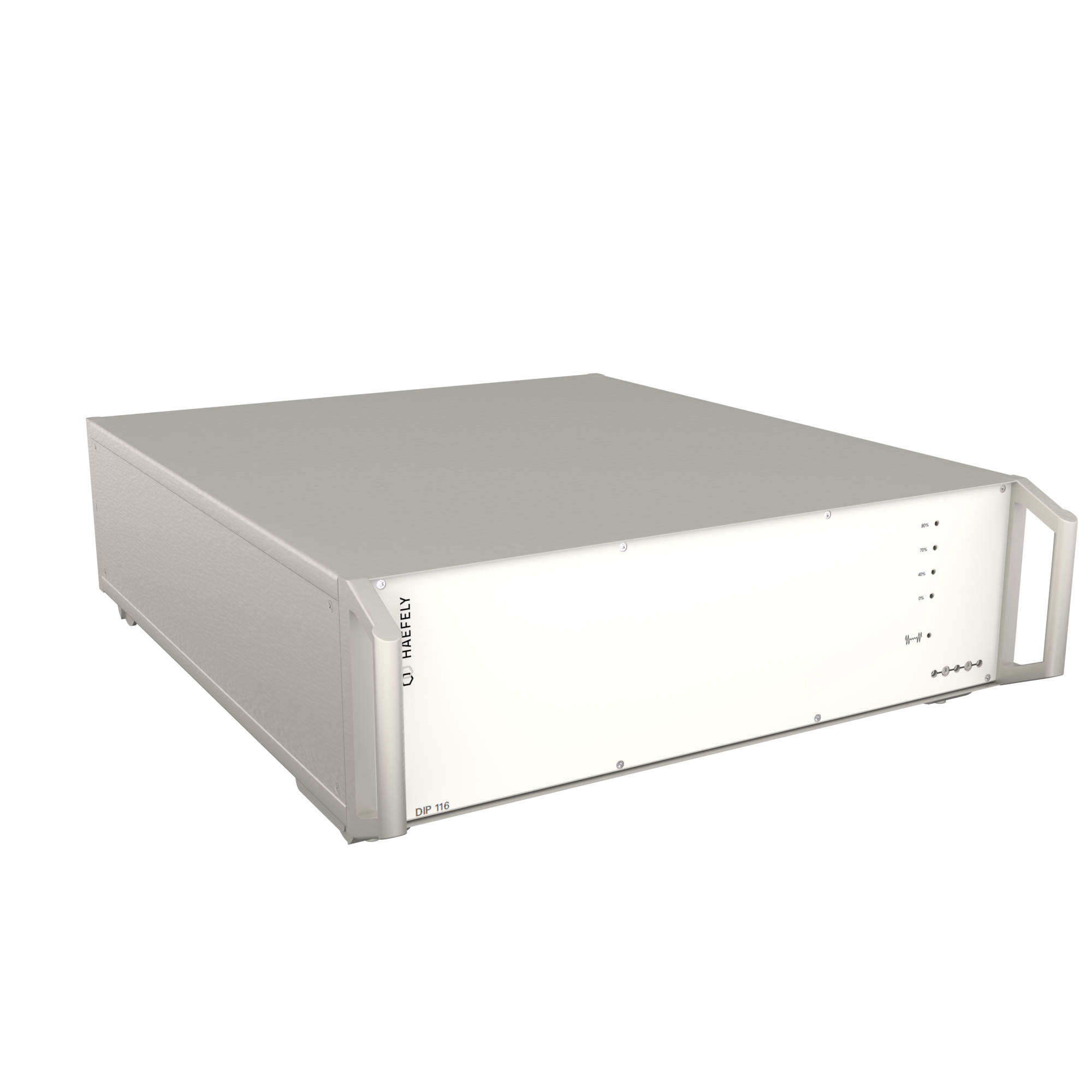

The DIP 116 is an Automatic Dips Single phase Transformer and can be used to simulate power supply failures as voltage interrupts, designed as the accessory compatible with AXOS5/AXOS8.
The DIP 116 has an independent connection to an external power supply via banana plugs. Once the setup is done it can be fully automatically controlled through the touch screen of the AXOS5/AXOS8 when being in the menu field of the “Voltage Dips”.

Once detected, the recommended dip percent value (given by standard) can be programmed in the AXOS menu.

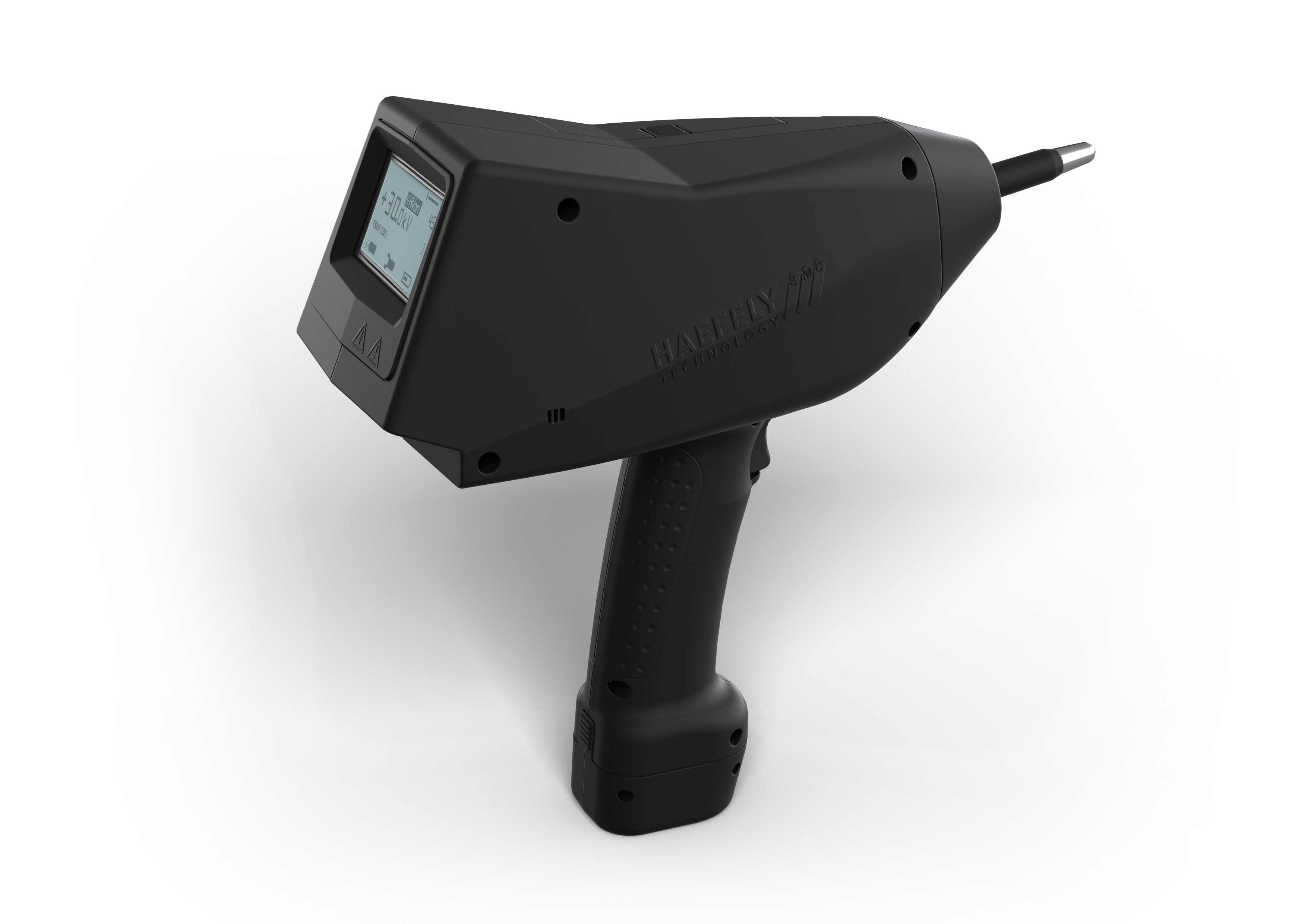

The ONYX is a state of the art electrostatic discharge simulator available in 16 kV or 30 kV versions. It is the most ergonomic ESD simulator without any additional base control unit that can be battery or mains operated.

The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the ONYX in all types of test sites. The ONYX also includes a bleeder resistor which is connected in parallel with the output of the high-voltage power supply circuit. This ensures that the high voltage power supply is completly discharged after each injected pulse to an EUT or if the ESD simulator itself will be turned-off by the user (bleed-off). The smart key button, integrated into the trigger button has various functions that can be defined by the user including polarity switching, LED light, counter reset, voltage stepping up/down and others.

The ONYX also features a unique selftest which verifies all of the main components of the unit are working correctly. This ensures that accurate and reliable tests are performed every time the gun is used.

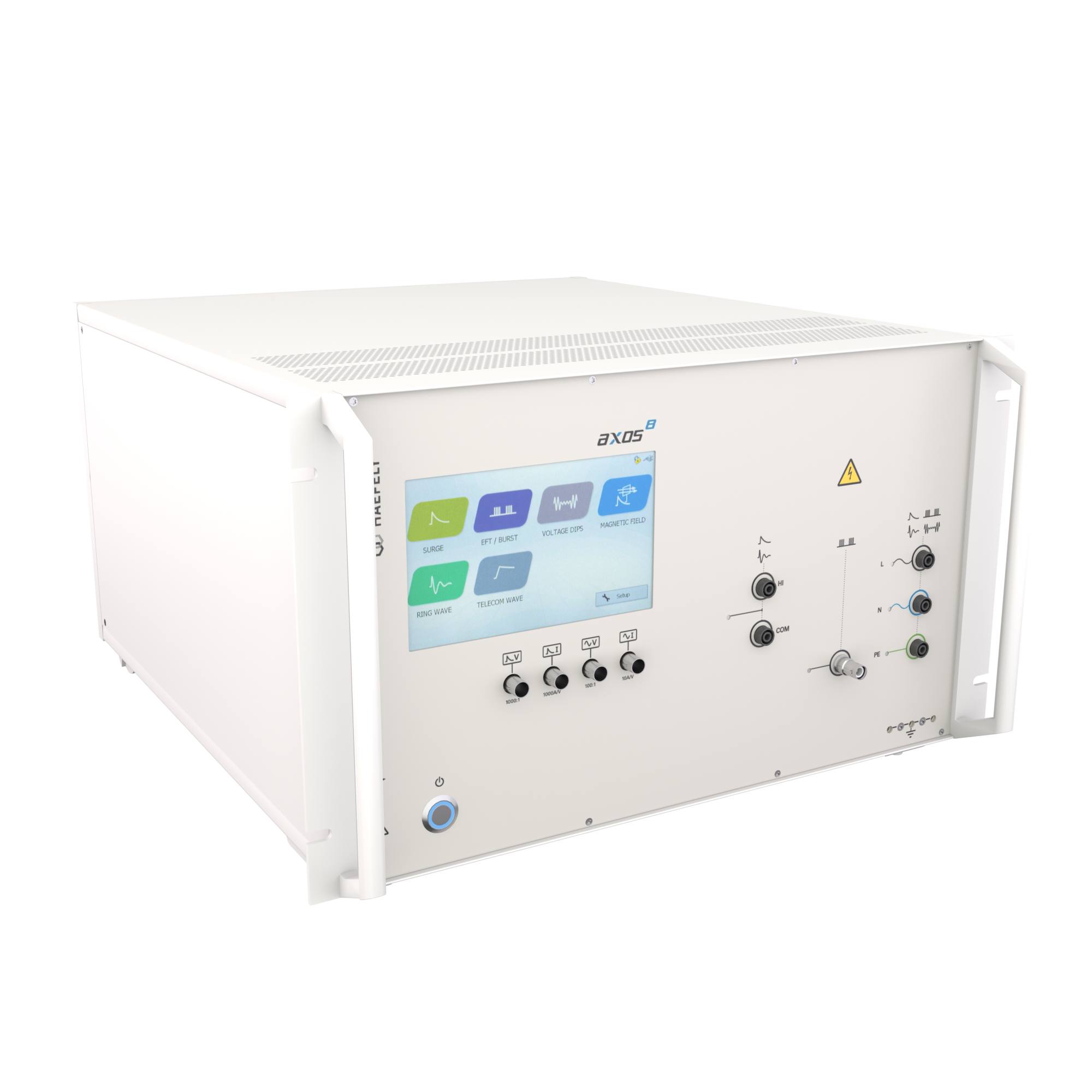

Welcome to the unique design and concept of modularity designed by HAEFELY. HAEFELY is recognizing an increasing interest in testing departments to configure the required functions in compact immunity test systems more flexible than ever. For that reason HAEFELY designed a unique concept of modularity which eviscerates large additional investments for customers in the future.

The AXOS series transient generators has been tailored to exactly meet these requirements, offering special cost advantages for T&M applications in the development, production and servicing of telecommunications, components as well as safety and industrial electronics.

All AXOS test systems come equipped with all the hardware needed for instant upgrades by only entering optional key codes into the licence code manager of the unit. After entering the key code(s) the additional test functionalities like Surge Combination Wave, Ring Wave, Telecom Wave, EFT/Burst or Voltage Dips and Interrupts become available immediately. No direct intervention has to be done by the user at all.
