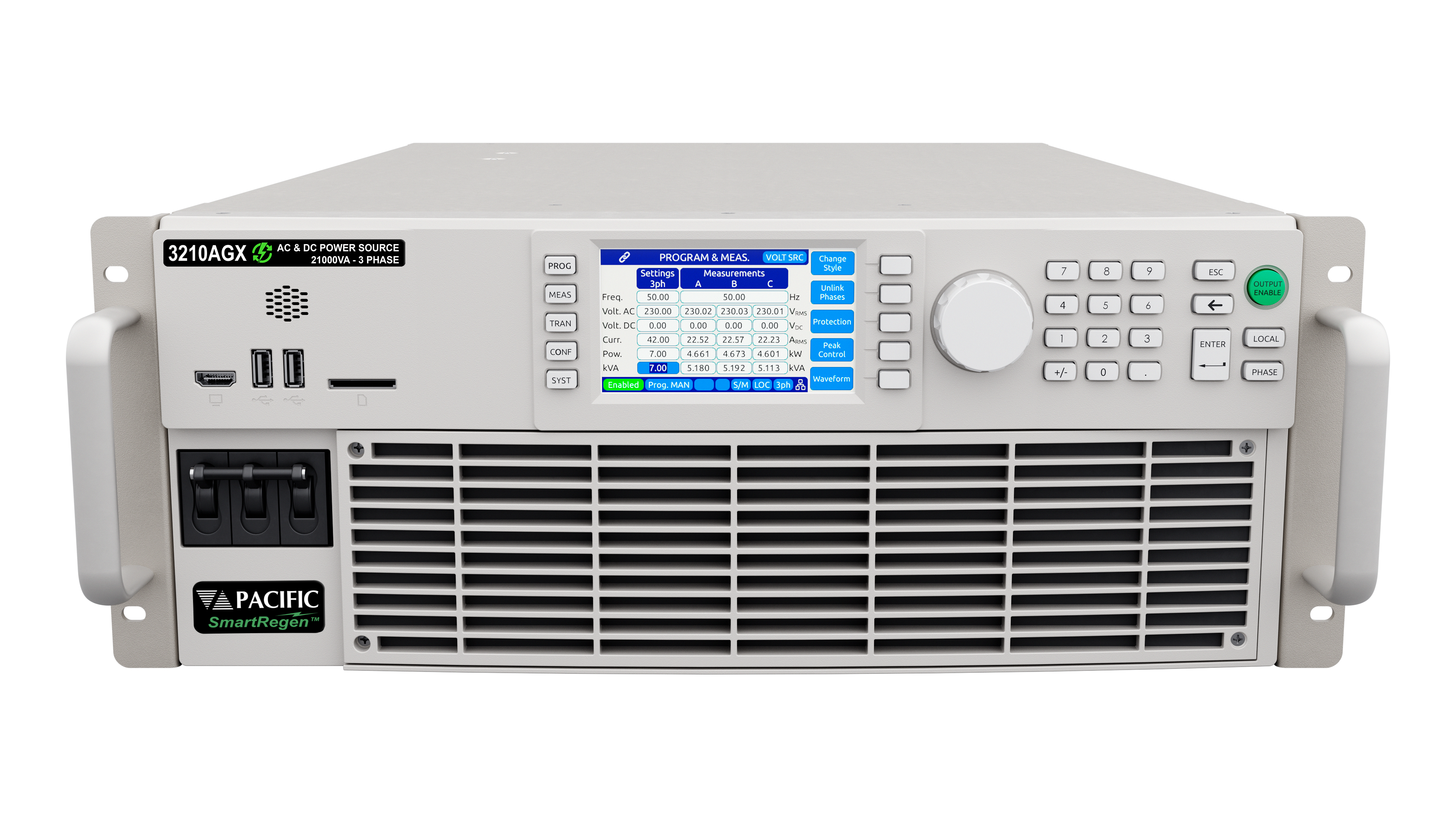

AGX Series - All-In-One Regenerative 4-Quadrant AC/DC Power Source
Description
All-In-One Regenerative AC/DC Power Sources & Loads with output powers from 6 kVA/kW to 21 kVA/kW in 4 U. Regenerative systems up to 168 kVA/kW in a single 19" Rack or Systems up to max. 252 kVA/kW can be achieved by parallel connection.
Key Features
- All-In-One: Grid Simulator, AC & DC Power Source, AC & DC Electronic Load (Option L)
- Four Quadrant Operation with energy recovery back to the grid
- Ultimate Flexibility with 6 configurations: 1, 2 or 3 Phase, dual or triple independent outputs/inputs, single + split outputs/inputs.
- AC, DC, AC+DC offset, DC + AC Ripple modes. Full power available in AC and DC
- Single constant power voltage (Voltage Source mode) or current range (Current Source mode)
- Advanced waveform capture scope function
- Harmonic measurement for voltage and current on all phases
- Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
- Harmonics (Interharmonics with option)
- Extensive Analog and Digital I/O for ATE and system integration.
- Sine, Square, Triangle, THD and Arbitrary waveforms
- 380V-480V 3 Phase AC input with Active PFC
- Standard Models in Power Levels from 6kVA to 21kVA. Parallel units up to 252 kVA.
- 200 stored programs for both static and dynamic Transient Testing
- LIST, PULSE and STEP Mode Transients
- Programmable Output Impedance (R+L) both Real-Time & RMS modes
- Continuous Self Calibration (CSC)
- Precision Voltage Programming – 0.02% with CSC engaged in AC and DC modes
- Standard Ethernet (LAN), USB, GPIB and RS-232 Interfaces with SCPI compatibility
- LXI Compliant LAN/Ethernet with embedded web server
- IVI Instrument drivers
- POWER FLEX upgrade program allows units to be retrofitted for higher power output
The All-in-1 Regenerative AC & DC Power Source
The AGX Series is an ‘All-in-One’ test solution that can be used as a fully programmable AC/DC power source, current source, power supply and electronic load featuring AC, DC, and AC+DC output capability and an extended frequency range up to 3000Hz.This flexible, high performing, and intelligent test system makes it the ideal choice for all AC and DC regenerative power applications.
- 4-Quadrant AC/DC Source, Current Source, and Load
- 6kVA / kW to 21kVA / kW in 4U chassis; Parallel up to 168kVA/kW; Dual cabinets up to 252kVA/kW
- AC, DC, AC+DC output capability
- Single, split, three-phase, multi-channel configuration
- Voltage: 350Vac L-N/606Vac L-L or ±500Vdc
- Frequency range 15Hz-1200Hz (Option up to 3000Hz)
- Regenerative power > 90%, SiC technology
- Galvanic isolation from facility AC input to output and between output phases / channel
Programmable AC & DC Power Source in 4 Quadrant Operation
The AGX Series consists of a range of High Power Switching AC, DC and AC+DC capable Power Sources covering a power range from 6kVA/kW to 21kVA/kW in single 4U chassis. Parallel multiple units up to 168kVA/kW or dual cabinets up to 252kVA/kW. The AGX provides four-quadrant operation for both sourcing and sinking of AC or DC power. Operating modes include single, split and three phase output (source) or input (electronic load) configurations.
Test Applications
Applications include aerospace & Defense Power and Compliance Testing; EV Charging, On Board Chargers (OBC), V2G, V2H and V2X; Solar PV/Grid-Tied Inverters; Energy Storage Systems (ESS), Home ESS; Smart-Grid Simulation; EMC Compliance Testing. The All-in-1 AGX is a powerful tool that can can address simple, manually controlled frequency conversion to harmonic immunity testing and sophisticated transient simulation.
Constant Power Voltage Range
A single constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminating the need to switch between voltage ranges. This prevents potential disruptions in power.
Exceptionally High Current
The AGX Regenerative AC/DC Power Source provides a broader range of current eliminating the risk of over or under sizing the power source. This reduces the need for additional capital investment. The diagram to the right illustrates the AGX’s capability to provide 20% more current from 120V to 200V when compared to a typical unit that maxes out at 35A/phase.
Wide Frequency Range with Extended Option up to 3000Hz
The AGX has a wide output frequency range which provides ultra flexibility. Standard range from 15Hz to 1200Hz. This is ideal for avionics and defense applications that require both 400Hz steady state frequency as well as 360Hz to 800Hz wild frequency ranges. The AGX also offers extended frequency range from 1Hz to 3000Hz.
Simultaneous AC & DC Operation on Single PhasesSimultaneous AC and DC load operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC. Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUU.
Optional AC/DC Regenerative Load Reduces Capital Costs
The “L” Option adds Regenerative Electronic Load capability providing several AC and DC operating modes to push the boundaries of test environment. Simulate linear and non-linear loads (rectified), inductive and capacitive loads. AC Modes: Constant Current, Constant Power & Apparent Power, Constant Resistance, Constant Voltage, CC+CR, CC / CS Rectifier Mode 1ø & 3ø DC Modes: Constant Current, Constant Power, Constant Resistance, Constant Voltage, CR+CC.
Simplify Testing with SmartSource Suite Remote Control Platform
Built-in SmartSource Suite Remote Control Platform Pacific Power Source’s SmartSource Suite provides full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device.
