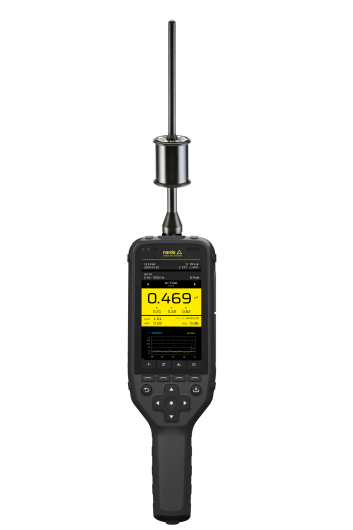

FieldMan - Electromagnetic field meter
Description
The FieldMan opens up new possibilities in terms of versatility and handling of electromagnetic field measuring devices. The lightweight, intuitive device can be used with different probes, enabling reliable, direction-independent measurements from 0 Hz (DC) to 90 GHz, thus detecting high- and low-frequency electric and magnetic fields. Thanks to its accurate and reproducible measurements, the FieldMan delivers meaningful and reliable results wherever the safety of people in the vicinity of high electric or magnetic field strengths is concerned. Environmental sensors store temperature, humidity, measurement height and air pressure. A digital probe interface also eliminates the need for calibration of the measuring device. Additional information such as data, text, voice recordings, photos or videos can be easily added. A key area of application is the verification of compliance with general safety regulations such as FCC, IEEE, ICNIRP or EMF Directive 2013/35/EU.
Reliable EMF measurement
Make it easy for yourself: with structured menu navigation, many display elements familiar from smartphone applications, self-explanatory symbols and customisable processes.
Simple data entry
Add whatever you need: the results can be supplemented with text and voice comments, position data (GNSS, distance above ground), photos or videos.
Large colour display
Read all values reliably, even in poor lighting and visibility conditions. This is ensured by the viewing angle stability, high luminance and highly effective anti-reflective coating.
An optional WiFi interface offers remote control via a smartphone app. A built-in GPS receiver and rangefinder for easy location determination are also available as options.
The FieldMan in combination
A wide range of isotropic field probes are available for the FieldMan. All of them transmit their information and measurement data to the FieldMan as a digital signal, either via an electrical USB interface or an optical COM interface. This significantly reduces interference compared to high-impedance analogue interfaces. The specially developed screw connectors and electrical contacts are extremely robust and durable.
In combination with the HP-01 magnetometer, static and time-varying magnetic fields from 0 Hz to 1000 Hz can be analysed. The main application is the measurement of high static fields to ensure the safety of persons who have access to such areas.
The FieldMan can also be used to read out the EHP-50F, an LF analyser in a particularly compact design, which is equipped with E-field and H-field sensors for all 3 spatial axes. This allows electrical and magnetic fields to be measured frequency-selectively, direction-independently, with high accuracy and dynamics from 1 Hz to 400 kHz. The weighted peak measurement method is used for standard-compliant measurement of complex signal forms. The manufacturer's patented method evaluates the input signal by mathematical convolution in the time domain. The result is a direct display of the exposure as a percentage of the limit value. This makes the measurement particularly quick and easy for the user to apply. Weighted peak supports the limit value curves of the most important standards.
