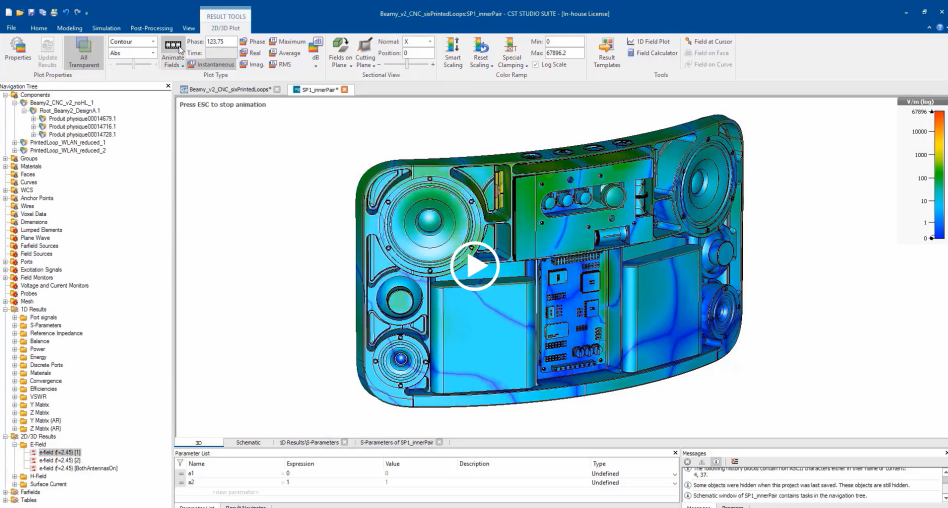

CST Studio Suite® is a high-performance 3D EM analysis software package for designing, analyzing and optimizing electromagnetic (EM) components and systems.

Electromagnetic simulation software enables engineers to investigate the electromagnetic properties of components or whole systems efficiently. Electromagnetic (EM) systems pose multiscale challenges, such as very wide frequency ranges and electrically large structures with very fine detail. Dedicated solvers exploit specific numerical technologies for fast and accurate simulation. EM simulation can be applied throughout the entire design process. From the inception of an idea, to the synthesis of components to meet specifications, to analyzing the electromagnetic performance under operational conditions: virtual prototypes are transforming the design cycle.

EM simulation software is a game changer when it comes to reducing the time and cost of bringing a product to market, not just in the high-tech industries of electronics and communication, but also in aerospace, defense, transportation and life sciences. Analysis with EM software ranges from individual components such as antennas, sensors and chips up to entire devices, including aircraft, smartphones and MRI.

In an electrically powered vehicle, the powertrain components are an integral part of the entire vehicle. Novel EMC concepts have to be considered in the very early stages of product development and can no longer follow the traditional approach where EMC was of interest only in the late design phases.

A complete vehicle is an extremely complex product. Creating simulation models and collecting all the necessary data is a challenge for OEMs. Bringing simulation and CAD data together, at any time, always up-to-date, is possible with the connection of CST Studio Suite and the 3DEXPERIENCE platform.

Further information here:

https://blog.3ds.com/brands/simulia/dosimetry-and-emc-simulation-of-electric-vehicles/
