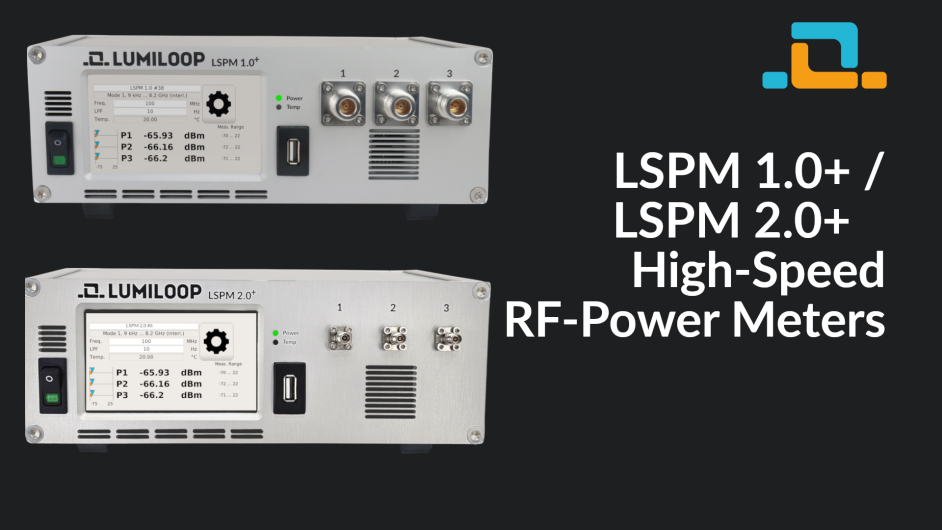

LSPM 1.0+ / 2.0+ RF Power Meter with Touchscreen and Ethernet Interface
Description
LSPM 1.0+/2.0+ Triple High-Speed Power Meters are three channel, high speed, high accuracy and high dynamic range RF Power Meters. Single and dual channel versions are available as well. Their frequency range is 9 kHz to 8.2 GHz for LSPM 1.0+ and 9 kHz to 26.5 GHz for LSPM 2.0+.
Compensation of linearity, frequency and actively controlled power sensor temperature guarantee accurate measurements. A dynamic range of 80 dB for LSPM 1.0+ and 72 dB for LSPM 2.0+ is achieved for many frequencies.
The LSPM 1.0+/2.0+ Power Meters’ high sampling rate allows for high resolution time-domain signal analysis. Power Meters can be synchronized with signal generators in order to realize high resolution pulse analysis.
LSPM 1.0+/2.0+ allow for RF power measurements, automated test setups, ISO 11452-4 BCI tests and ISO 11452-9 portable transmitter tests. LSPM 2.0+ is particularly well suited for ETSI EN 300 328 wide band transmission system tests and ETSI EN 301 893 broad band radio measurements.
