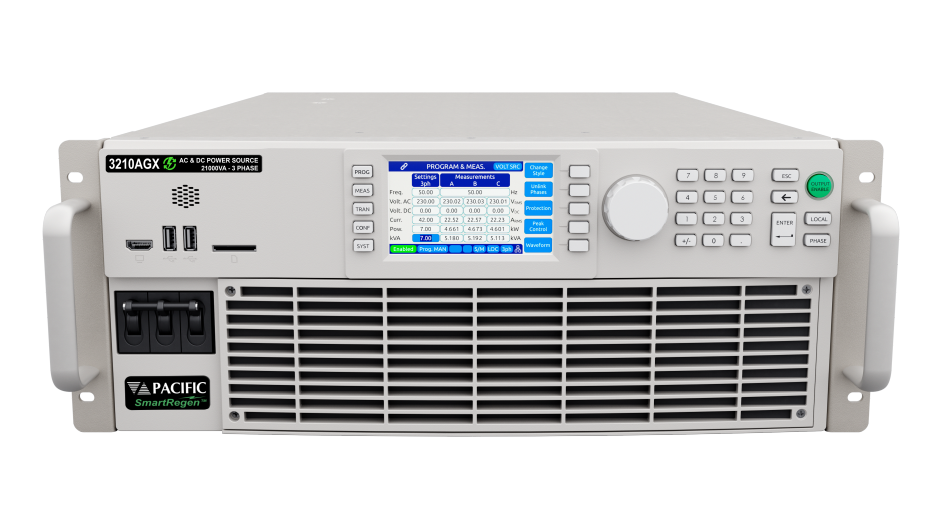

AGX Series - All-In-One Regenerative 4-Quadrant AC/DC Power Source

Pacific Power Source Europe GmbH

Supplier profile All products

Contact supplier

Description

All-In-One Regenerative AC/DC Power Sources & Loads with output powers from 6 kVA/kW to 21 kVA/kW in 4 U. Regenerative systems up to 168 kVA/kW in a single 19" Rack or Systems up to max. 252 kVA/kW can be achieved by parallel connection.

Key Features

All-In-One: Grid Simulator, AC & DC Power Source, AC & DC Electronic Load (Option L)
Four Quadrant Operation with energy recovery back to the grid
Ultimate Flexibility with 6 configurations: 1, 2 or 3 Phase, dual or triple independent outputs/inputs, single + split outputs/inputs.
AC, DC, AC+DC offset, DC + AC Ripple modes. Full power available in AC and DC
Single constant power voltage (Voltage Source mode) or current range (Current Source mode)
Advanced waveform capture scope function
Harmonic measurement for voltage and current on all phases
Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
Harmonics (Interharmonics with option)
Extensive Analog and Digital I/O for ATE and system integration.
Sine, Square, Triangle, THD and Arbitrary waveforms
380V-480V 3 Phase AC input with Active PFC
Standard Models in Power Levels from 6kVA to 21kVA. Parallel units up to 252 kVA.
200 stored programs for both static and dynamic Transient Testing
LIST, PULSE and STEP Mode Transients
Programmable Output Impedance (R+L) both Real-Time & RMS modes
Continuous Self Calibration (CSC)
Precision Voltage Programming – 0.02% with CSC engaged in AC and DC modes
Standard Ethernet (LAN), USB, GPIB and RS-232 Interfaces with SCPI compatibility
LXI Compliant LAN/Ethernet with embedded web server
IVI Instrument drivers
POWER FLEX upgrade program allows units to be retrofitted for higher power output

The All-in-1 Regenerative AC & DC Power Source

The AGX Series is an ‘All-in-One’ test solution that can be used as a fully programmable AC/DC power source, current source, power supply and electronic load featuring AC, DC, and AC+DC output capability and an extended frequency range up to 3000Hz.This flexible, high performing, and intelligent test system makes it the ideal choice for all AC and DC regenerative power applications.

4-Quadrant AC/DC Source, Current Source, and Load
6kVA / kW to 21kVA / kW in 4U chassis; Parallel up to 168kVA/kW; Dual cabinets up to 252kVA/kW
AC, DC, AC+DC output capability
Single, split, three-phase, multi-channel configuration
Voltage: 350Vac L-N/606Vac L-L or ±500Vdc
Frequency range 15Hz-1200Hz (Option up to 3000Hz)
Regenerative power > 90%, SiC technology
Galvanic isolation from facility AC input to output and between output phases / channel

Programmable AC & DC Power Source in 4 Quadrant Operation

The AGX Series consists of a range of High Power Switching AC, DC and AC+DC capable Power Sources covering a power range from 6kVA/kW to 21kVA/kW in single 4U chassis. Parallel multiple units up to 168kVA/kW or dual cabinets up to 252kVA/kW. The AGX provides four-quadrant operation for both sourcing and sinking of AC or DC power. Operating modes include single, split and three phase output (source) or input (electronic load) configurations.

Test Applications

Applications include aerospace & Defense Power and Compliance Testing; EV Charging, On Board Chargers (OBC), V2G, V2H and V2X; Solar PV/Grid-Tied Inverters; Energy Storage Systems (ESS), Home ESS; Smart-Grid Simulation; EMC Compliance Testing. The All-in-1 AGX is a powerful tool that can can address simple, manually controlled frequency conversion to harmonic immunity testing and sophisticated transient simulation.

Constant Power Voltage Range

A single constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminating the need to switch between voltage ranges. This prevents potential disruptions in power.

Exceptionally High Current

The AGX Regenerative AC/DC Power Source provides a broader range of current eliminating the risk of over or under sizing the power source. This reduces the need for additional capital investment. The diagram to the right illustrates the AGX’s capability to provide 20% more current from 120V to 200V when compared to a typical unit that maxes out at 35A/phase.

Wide Frequency Range with Extended Option up to 3000Hz

The AGX has a wide output frequency range which provides ultra flexibility. Standard range from 15Hz to 1200Hz. This is ideal for avionics and defense applications that require both 400Hz steady state frequency as well as 360Hz to 800Hz wild frequency ranges. The AGX also offers extended frequency range from 1Hz to 3000Hz.

Simultaneous AC & DC Operation on Single PhasesSimultaneous AC and DC load operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC. Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUU.

Optional AC/DC Regenerative Load Reduces Capital Costs

The “L” Option adds Regenerative Electronic Load capability providing several AC and DC operating modes to push the boundaries of test environment. Simulate linear and non-linear loads (rectified), inductive and capacitive loads. AC Modes: Constant Current, Constant Power & Apparent Power, Constant Resistance, Constant Voltage, CC+CR, CC / CS Rectifier Mode 1ø & 3ø DC Modes: Constant Current, Constant Power, Constant Resistance, Constant Voltage, CR+CC.

Simplify Testing with SmartSource Suite Remote Control Platform

Built-in SmartSource Suite Remote Control Platform Pacific Power Source’s SmartSource Suite provides full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device.

More from us

Our website Our product

More products by Pacific Power Source Europe GmbH

Trade fair innovation

ECTS2 Series - Harmonics and Flicker Test Systems

The ECTS2 Series of EMC Compliance Test System allows EMC labs to perform full compliance testing of products to the following IEC standards:

Emissions:

IEC 61000-3-2 Harmonics and Interharmonics to 16A / Phase
IEC 61000-3-12 Harmonics and Interharmonics to 75A / Phase
IEC 61000-3-3 Flicker to 16A / Phase
IEC 61000-3-11 Flicker to 75A / Phase

Immunity:

IEC 61000-4-11 Voltage Dips, Interruptions and Variations to 16A / Phase /
IEC 61000-4-13 Interharmonics
IEC 61000-4-14 AC Voltage Fluctuations
IEC 61000-4-17 DC Ripple
IEC 61000-4-27 AC Voltage Unbalance three phase
IEC 61000-4-28 Frequency Variations
IEC 61000-4-29 (Pre Compliant ONLY) DC Voltage Dips, Interruptions and Variations
IEC 61000-4-34 AC Voltage Dips, Interruptions and Variations to 74A/phase

Details:

AC only or AC and DC Test Systems
Single Phase and Three phase Output Modes
Programmable Frequency
Current and Power Limit Protection
EMC Test Software for Harmonics, Flicker and Immunity
Detailed test reports to documents EUT compliance
Wide Range of Power Levels Available
Lumped Flicker Impedance for Flicker Testing
Up to 0-600 VAC L-N / 1000V L-L Output Voltage available
Up to 425Vdc output and 950Vdc Voltage
15-1200 Hz Full Power Bandwidth
USB, LAN, GPIB & RS232 Interfaces
Transfer Switch Option for IEC 61000-11,-34
Choice of Cabinet Sizes

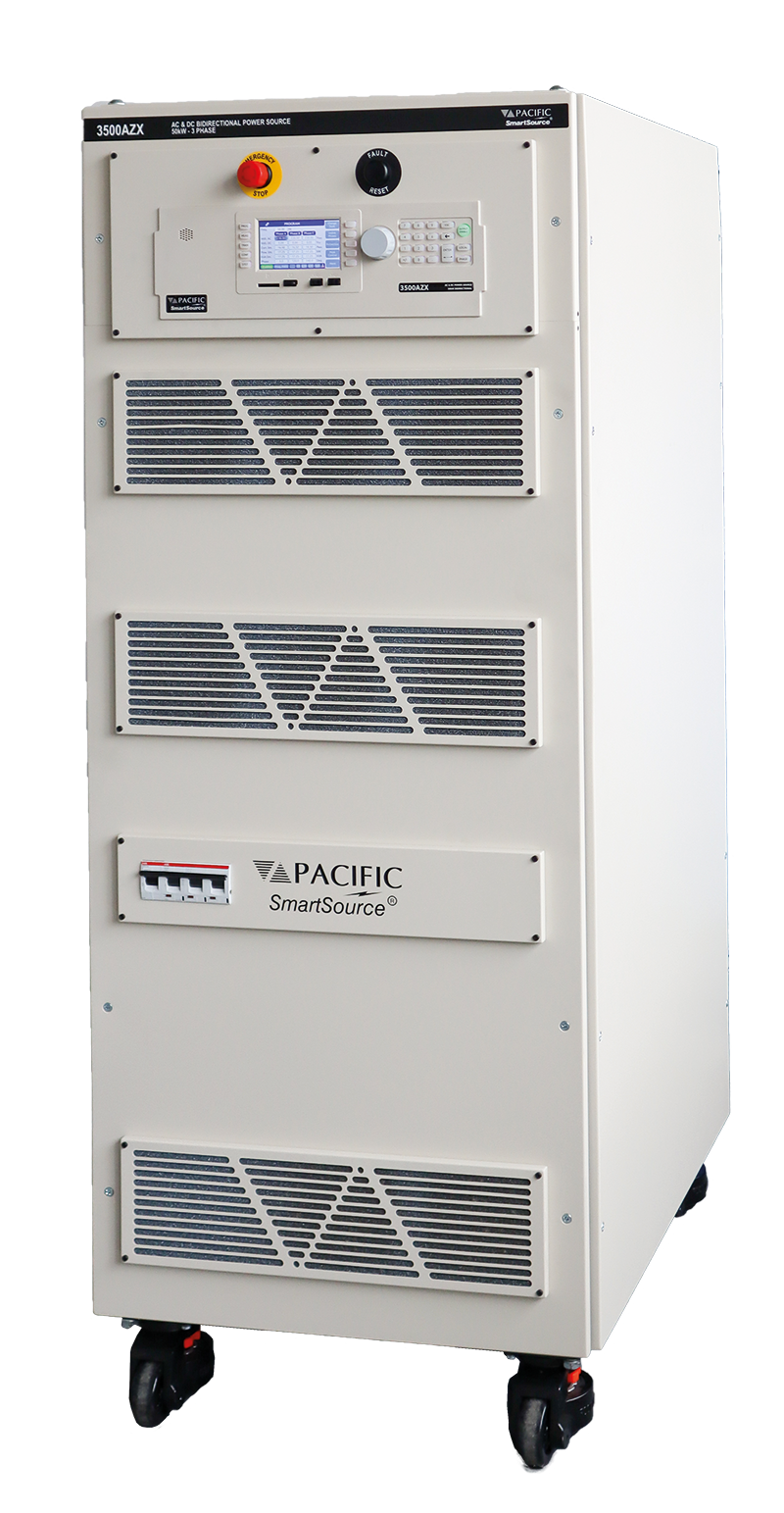

AZX Series - Regenerative AC/DC Power Source and electronic Load

Regenerative Source and Load with PHIL Interface Capability

The AZX Series is an all-in-1 regenerative 4-quadrant AC and DC power source that can function as an AC voltage source, DC power supply, current source, AC/DC load, and PHIL Interface. The AZX’s high power density provides 30kVA/kW up to 55kVA/kW in a single cabinet and can parallel up to 550kVA/kW. This comprehensive platform is optimized for PHIL, has three powerful DSPs to cover advanced applications, and eliminates the need for add-on equipment.

4-Quadrant AC/DC Source, Current Source, and Load
Optimized for PHIL Applications (Option H)
30kVA / kW, 45kVA / kW, 55kVA / kW; Parallel cabinets up to 550kVA / kW
AC, DC, AC+DC output capability
Single, split, three-phase, multi-channel configuration
Dual Constant Power Voltage Range:

AC Voltage Ranges:
0-240 V L-N / 0-415 V L-L, and 0-480 V-LN / 0-830 V-LL
DC Voltage Ranges:
0-340 Vdc and 0-680 Vdc

Frequency range 15Hz-1000Hz
Regenerative power > 90%, SiC technology
Galvanic isolation from facility AC input to output and between output phases / channel

All-in1 Multi-Functional AC DC Power Source

The Regenerative AC/DC Power Source AZX Series simulates almost any power disturbance and distorted waveforms. The AZX Series is cost effective and fully programmable for both basic frequency conversion and advanced AC power line or DC power disturbance test applications requiring up to 1000 Hz fundamental frequency. The energy recovery capability allows both sourcing and sinking of current and power up to 100% of rated power. Adding the Load Option (Option L) adds full electronic regenerative AC & DC Load programming capability to the AZX while Option H provides high speed analog I/O for PHIL.

Test applications: Aerospace power and compliance testing, Utility grid, microgrid, EV chargers, Vehicle-to-Grid (V2G), Vehicle-to-Home (V2H), Solar PV/grid-tied inverters, home energy storage systems, UPS, PDUs, test laboratories, and more.

Applications range from simple, manually controlled frequency conversion to IEC power line emission and immunity testing and with sophisticated transient simulation and PHIL applications.

Modular Power up to 550kVA/kW with Dual Constant Power Voltage Range

The AZX series supports both low and high volrtage ranges for AC or DC. Test accurately with seamless transition of voltage ranges. The constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminating the need to switch between voltage ranges. This prevents potential disruptions in output power.

Mobile-friendly, parallelable cabinets make it easy for set up and reconfiguration.

Increase power when needed to meet future test requirements.
Reduced downtime. Modularity increases up time during service and maintenance of individual cabinets.
Top air-cooled vents allow the units to be placed against a wall or back-to-back to maximize floor space.

Power Hardware-in-the-Loop with High-Speed Analog I/O

The AZX Series provides integrated test system design with a standard suite of analog and digital I/O functions. The user can assign command macros or setting parameters to analog or digital I/O pins as needed. This provides a unique level of customization for putting together sophisticated test stations.

While analog inputs and outputs are standard on all AZX modes, for real-time Power Hardware in the Loop (HIL) Grid simulation applications, the AZX offers an optional high speed set of analog inputs and outputs with fast output response. By adding the H Option, the AZX can be used as an amplifier for PHIL Applications. This analog interface provides high speed input for controlling frequency, voltage or current and waveshape. Voltage and Current output capture signals are returned to the Real Time Simulation System.

Flexible Output Configuration for Testing Wide-Range of Conditions

Simultaneous AC and DC operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC, (AC+DC optional) output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC.

Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.

Easily Generate Harmonics & Inter-Harmonic Waveforms

The Regenerative AC DC Source – AZX Series has a built-in waveform digitizer and scope with fast transient capabilities at 100us time resolution supporting LIST, PULSE and STEP modes. Waveform generation includes ten Standard, Sine, Square, Triangle, Clipped and Harmonics (and inter-harmonics option).

Simplify Testing with SmartSource Suite Remote Control Platform

Built-in SmartSource Suite Remote Control Platform

Pacific Power Source’s SmartSource Suite provides full remote control, development, and execution of test sequences in real-time.

Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device

Key Features

Available Models in 30kVA, 45kVA, 55kVA. Parallel cabinets up to 440kVA. Contact us for higher power.
Voltage Source and Current Source modes standard
AC/DC Electronic Load (Option L) to support Regenerative AC or DC Load Applications
High-Speed analog I/O controls for PHIL application support (Option H)
Regenerative Power > 90%; Source and Sink full Power and Current
AC Mode, DC Mode, AC+DC Mode
DC,15 to 1,000 Hz Frequency Ranges
Dual Constant Power mode AC Voltage Ranges 0~225V L-N and 0~440V L-N
Galvanic Isolation from Facility AC Input to Output and Between Output Phases / Channels
Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
Waveform capture scope function for voltage and current
Harmonic measurement; Inter-harmonics Option
Extensive Analog and Digital I/O for ATE and system integration
Top air-cooled vent design allows cabinets to be placed back to back or against a wall to maximize floorspace.

1, 2 or 3 Phase Selectable Output from front panel or bus command
Sine, Square, Triangle, THD and Arbitrary waveforms
Up to 0-300 VAC Direct Coupled Out
3 Phase AC input with Active PFC, selectable input voltage
200 stored programs for both static and dynamic Transient Testing
LIST, PULSE and STEP Transient Modes
Continuous Self Calibration (CSC)
Programmable Output Impedance (R+L) both Real-Time & RMS modes
Precision Voltage Programming – 0.02% with CSC engaged in AC / DC modes
Standard RS-232, USB, GPIB and Ethernet Interface with SCPI compatibility
IVI Instruments drivers
CE (EMC/Safety) Marked
Special 2 or 3 independent outputs settable to different modes (Voltage or Current Source or ELoad)
SmartSource Suite LXI Compliant LAN/Ethernet with embedded web server

1 / 2
