Shieldex® Shielding Pouches

The Shieldex® Reverberation Chamber (VIRC) is a portable RF-shielded test enclosure designed for precise EMC testing and laboratory applications. Developed as a flexible and cost-efficient alternative to conventional reverberation chambers, it enables reliable measurements in the frequency range of 30 MHz to 18 GHz with an average shielding effectiveness of up to 95 dB. Its lightweight, textile-based and modular design allows for quick installation, easy transport, and customization to meet specific testing requirements.

The chamber is constructed from highly conductive Ag/Cu/Ni/Sn-plated nylon fabric, arranged in multiple layers to provide a durable, non-oxidizing shielding surface. Inside the chamber, a metallized stirrer generates a diffuse and homogeneous electromagnetic field, ensuring consistent and reproducible test conditions. Additional options such as doors, windows, lighting, ventilation with honeycomb filters, filter boxes, and various RF, power, and data feedthroughs allow flexible integration into different test environments.

The Shieldex® Reverberation Chamber is particularly suited for applications in EMC laboratories, automotive, aerospace, electronics development, and digital forensics. Its combination of mobility, high shielding performance, and customizable configuration makes it an efficient solution for modern EMC testing environments.

Shieldex® EMC RF Enclosure Inflatable
Revolutionary RF Shielding Tents with Inflatable Frame

The Shieldex® EMC shielding tents with an innovative inflatable frame enable rapid setup in just 60 seconds (depending on size) and are perfect for aerospace, defense, and security applications. Compared to traditional aluminum frames, they are four times lighter, require no permanent air supply, and remain stable for weeks. With high shielding performance, they are ideal for EMC testing of large products such as vehicles and aircraft.

Key Features
✔ Quick setup: Fully installed in just about one minute
✔ Ultra-light: Only approx. 10 kg for smaller enclosures
✔ High-performance shielding fabrics: Multi-layer silver/copper/nickel/tin-coated nylon with up to 85 dB shielding effectiveness (0.03 - 18 GHz)
✔ Flexible & mobile: Space-saving and easy to transport
✔ Additional features: Power filter boxes, I/O panels, ventilation, lighting, ESD curtains, textile or aluminum flooring options

Applications
✔ EMC testing in aerospace, defense, and security industries
✔ Shielding and securing large test products (e.g., vehicles, aircraft)
✔ Portable and flexible laboratory solutions

Additional Services
✔ Installation & dismantling service
✔ Retrofit and repair service
✔ Rental options available

Watch our video to see how fast and easy our EMC Enclosures with inflatable frame can be set up: https://www.youtube.com/watch?v=caej12kupro

Shieldex® RF Shielding Blanket – Precision Shielding for Accurate Measurements

The Shieldex® RF Shielding Blanket is a powerful solution for identifying and eliminating unwanted emissions in measurement setups. Designed specifically for measurement chambers, EMC laboratories, and high-frequency test environments, it effectively reduces electromagnetic interference (noise) that could distort measurement results.

Key Benefits
✔ High Shielding Effectiveness: Up to 97 dB for interference-free measurements
✔ Highly Conductive Material: Surface resistance of < 0.009 Ω/□
✔ Flexible & Adaptable: Lightweight and easy to integrate into existing setups

Applications
✔ Elimination of interference signals in test environments
✔ Optimization of measurement accuracy through precise shielding
✔ Use in shielded rooms & EMC measurement chambers

Effective Solution Against Electromagnetic Interference (Noise)

Electronic devices can be both sources and victims of electromagnetic interference. With increasing miniaturization and higher frequencies, modern technology has become more susceptible to unwanted emissions. Controlling EMI (Electromagnetic Interference) and EMS (Electromagnetic Susceptibility) is essential to ensure reliable measurement results.

The Shieldex® RF Shielding Blanket effectively reduces electromagnetic disturbances, ensuring maximum measurement accuracy and reliability.

📌 Perfect shielding for your test environment!

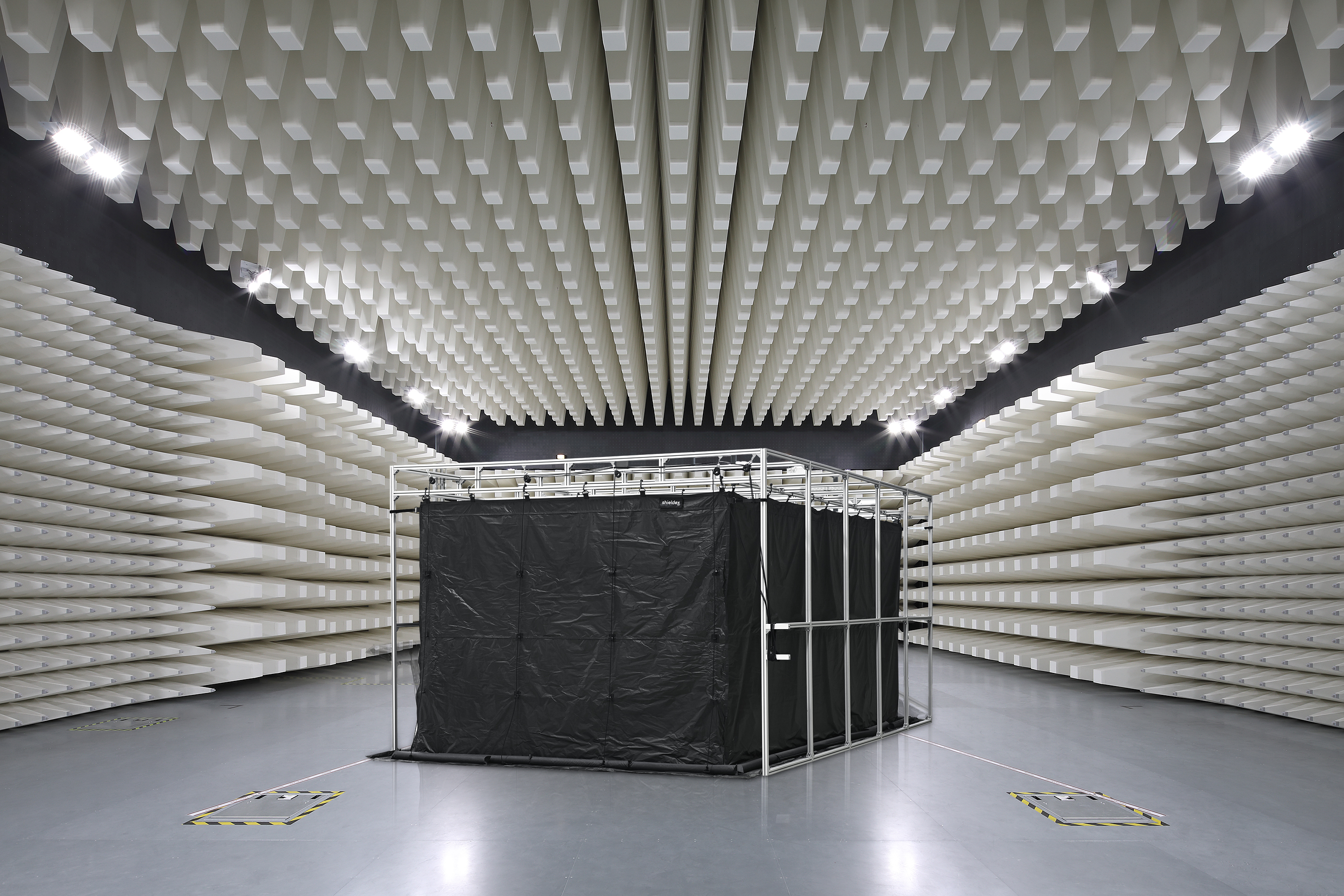

Our Shieldex® EMC Enclosures are the ideal choice for laboratory tests and measurements
in the frequency range from 0.03 to 16 GHz and shield up to 95 dB. Due to their flexible and lightweight components, our shielded tents are portable and can be erected and dismantled in a very short time.

Ideal for pre-compliance testing!
Unlike most shielding tents, Shieldex® EMC Enclosures are designed to allow for a wide variety of enclosure configurations without sacrificing quality and performance. Complex and costly EMC compliance testing can be avoided by using Shieldex® EMC Enclosures and pre-compliance testing during the product development phase.

Tailored to your requirement
Both the size and the fabric of the tent are designed according to your requirements. Your custom tent will be made in our in-house studio. Therefore, customer requests are easy to implement and any size is possible.

The Shieldex® EMI/RF/EMC Shielded Enclosure – Customized is a flexible and mobile shielding solution for EMC and pre-compliance testing in controlled electromagnetic environments. With a shielding performance of up to 95 dB in the frequency range from 0.03 to 40 GHz, it reliably protects against external interference and ensures precise testing conditions.

Thanks to lightweight textile shielding materials combined with a modular BOSCH® frame system, the enclosure can be quickly assembled, transported, and adapted to specific requirements. Size, configuration, and additional features such as ventilation, feedthroughs, or other laboratory integrations can be customized, making the solution ideal for applications in EMC laboratories, electronics development, automotive, aerospace, and digital forensics.

Application areas

• Shielding of highly sensitive electronic equipment
• Computer and mobile phone forensics
• Electromagnetic allergy/electrosmog
• Testing of cars, satellites, computers and control systems
• Use in leading companies within aerospace (NASA, OHB), the automotive industry and in the military sector

The Shieldex® Reverberation Chamber (VIRC) is a portable RF-shielded test enclosure designed for precise EMC testing and laboratory applications. Developed as a flexible and cost-efficient alternative to conventional reverberation chambers, it enables reliable measurements in the frequency range of 30 MHz to 18 GHz with an average shielding effectiveness of up to 95 dB. Its lightweight, textile-based and modular design allows for quick installation, easy transport, and customization to meet specific testing requirements.

The chamber is constructed from highly conductive Ag/Cu/Ni/Sn-plated nylon fabric, arranged in multiple layers to provide a durable, non-oxidizing shielding surface. Inside the chamber, a metallized stirrer generates a diffuse and homogeneous electromagnetic field, ensuring consistent and reproducible test conditions. Additional options such as doors, windows, lighting, ventilation with honeycomb filters, filter boxes, and various RF, power, and data feedthroughs allow flexible integration into different test environments.

The Shieldex® Reverberation Chamber is particularly suited for applications in EMC laboratories, automotive, aerospace, electronics development, and digital forensics. Its combination of mobility, high shielding performance, and customizable configuration makes it an efficient solution for modern EMC testing environments.

Shieldex® EMC RF Enclosure Inflatable
Revolutionary RF Shielding Tents with Inflatable Frame

The Shieldex® EMC shielding tents with an innovative inflatable frame enable rapid setup in just 60 seconds (depending on size) and are perfect for aerospace, defense, and security applications. Compared to traditional aluminum frames, they are four times lighter, require no permanent air supply, and remain stable for weeks. With high shielding performance, they are ideal for EMC testing of large products such as vehicles and aircraft.

Key Features
✔ Quick setup: Fully installed in just about one minute
✔ Ultra-light: Only approx. 10 kg for smaller enclosures
✔ High-performance shielding fabrics: Multi-layer silver/copper/nickel/tin-coated nylon with up to 85 dB shielding effectiveness (0.03 - 18 GHz)
✔ Flexible & mobile: Space-saving and easy to transport
✔ Additional features: Power filter boxes, I/O panels, ventilation, lighting, ESD curtains, textile or aluminum flooring options

Applications
✔ EMC testing in aerospace, defense, and security industries
✔ Shielding and securing large test products (e.g., vehicles, aircraft)
✔ Portable and flexible laboratory solutions

Additional Services
✔ Installation & dismantling service
✔ Retrofit and repair service
✔ Rental options available

Watch our video to see how fast and easy our EMC Enclosures with inflatable frame can be set up: https://www.youtube.com/watch?v=caej12kupro

Shieldex® RF Shielding Blanket – Precision Shielding for Accurate Measurements

The Shieldex® RF Shielding Blanket is a powerful solution for identifying and eliminating unwanted emissions in measurement setups. Designed specifically for measurement chambers, EMC laboratories, and high-frequency test environments, it effectively reduces electromagnetic interference (noise) that could distort measurement results.

Key Benefits
✔ High Shielding Effectiveness: Up to 97 dB for interference-free measurements
✔ Highly Conductive Material: Surface resistance of < 0.009 Ω/□
✔ Flexible & Adaptable: Lightweight and easy to integrate into existing setups

Applications
✔ Elimination of interference signals in test environments
✔ Optimization of measurement accuracy through precise shielding
✔ Use in shielded rooms & EMC measurement chambers

Effective Solution Against Electromagnetic Interference (Noise)

Electronic devices can be both sources and victims of electromagnetic interference. With increasing miniaturization and higher frequencies, modern technology has become more susceptible to unwanted emissions. Controlling EMI (Electromagnetic Interference) and EMS (Electromagnetic Susceptibility) is essential to ensure reliable measurement results.

The Shieldex® RF Shielding Blanket effectively reduces electromagnetic disturbances, ensuring maximum measurement accuracy and reliability.

📌 Perfect shielding for your test environment!
