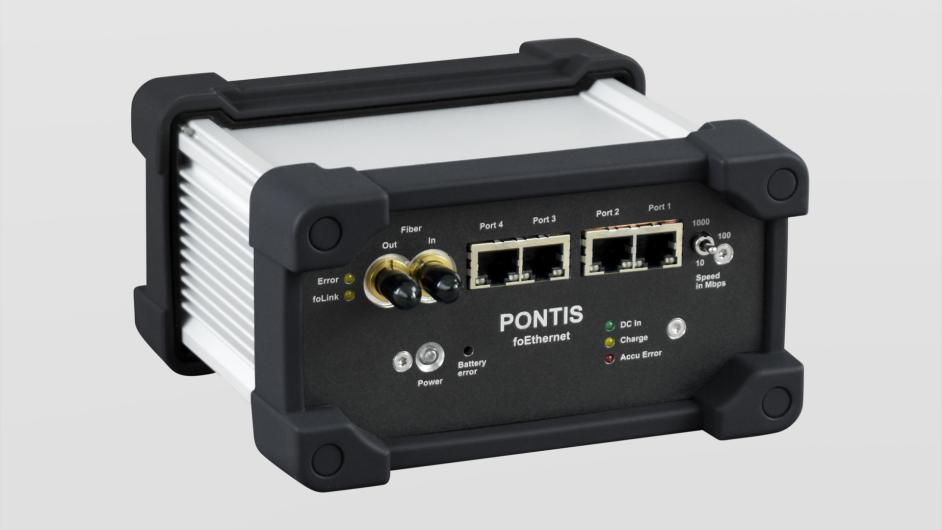

foEthernet4c

The growing market of e-mobility demands certification of the cars and the corresponding charging stations. As the lines for power and data communication are combined in one cable, the cables needs to be split up. The cables are not supplied by Audivo. The lines then need to be connected to a terminal block inside the enclosure.The fibre optic converters for the high frequency data lines are located in a special shielded box within the protect-ive enclosure.The powerlines need to be fed via appropriate filters, whereas the data lines are converted to fibre optic signals.As Powerline, Control Pilot signal (PWM) and CAN bus are available, the converter can be used for AC and DC charg-ing.The versatile concept of the PONTIS EMC converter may be used with most international standards. Both sides (car and EVSE) are shielded and may be used inside the EMC chamber.As some standards are still in draft status, the exact standard(s) required needs to be specified by customer

– Shielded transmission for car charging stations

– Data and power are split up

– Data transmission via fibre optics

– For AC and DC charging

– Most international standards supported

– RF-immunity 200 V/m up to 18 GHz

PONTIS EMC PECOS allows to access all EMC shielded cameras on a site from multiple PCs.
Each HDCon6 camera controller running PECOS can drive up to four HD-SDI cameras plus multiple IP cameras. If several HDCon6 are used they can all be accessed via LAN from any PC in the network.
Move the camera, record, replay, make snapshots – you have full control.

The HDCam6ECP camera is shielded up to 200 V/m at a resolution of 2 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme Zoom is needed (30 times optical zoom).
The camera includes wide dynamic range (WDR) and digital noise reduction (DNR), that eliminates noise and thus is generating a distinct and clear image. The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Thus it is ideal for optical post processing e.g for automatic change or error detection during immunity testing. PONTIS offers a special software for automated surveillance.
The camera can be operated remotely by the PONTIS EMC HD camera controllers.

The IRThermo6 is designed to observe the temperature of areas and devices in harsh electromagnetic environments or where low emission is required (e.g. EMC test facilities). The camera is covering an area of up to 19 * 12m at a distance of 9.5 m (other lenses on request). It is specially suited to survey temperature critical rooms and devices, where overheating can lead to severe damage. There are different lenses available to cover various areas. An auto­focus function helps to get precise results under changing conditions.
The camera works like a regular IP camera with ONVIF support. Addionally a comfortable PC software allows to set the parameters like region of interest and temperature ­thresholds.
The IRThermo6 can be controlled by an HDCon6 or an HDcon6IP, which offer event detection (e.g. over heat) and a fail safe contact.
The camera is shielded up to 200 V/m. All signal lines are transferred via fibre optic cable.

The growing market of e-mobility demands certification of the cars and the corresponding charging stations. As the lines for power and data communication are combined in one cable, the cables needs to be split up. The cables are not supplied by Audivo. The lines then need to be connected to a terminal block inside the enclosure.The fibre optic converters for the high frequency data lines are located in a special shielded box within the protect-ive enclosure.The powerlines need to be fed via appropriate filters, whereas the data lines are converted to fibre optic signals.As Powerline, Control Pilot signal (PWM) and CAN bus are available, the converter can be used for AC and DC charg-ing.The versatile concept of the PONTIS EMC converter may be used with most international standards. Both sides (car and EVSE) are shielded and may be used inside the EMC chamber.As some standards are still in draft status, the exact standard(s) required needs to be specified by customer

– Shielded transmission for car charging stations

– Data and power are split up

– Data transmission via fibre optics

– For AC and DC charging

– Most international standards supported

– RF-immunity 200 V/m up to 18 GHz

PONTIS EMC PECOS allows to access all EMC shielded cameras on a site from multiple PCs.
Each HDCon6 camera controller running PECOS can drive up to four HD-SDI cameras plus multiple IP cameras. If several HDCon6 are used they can all be accessed via LAN from any PC in the network.
Move the camera, record, replay, make snapshots – you have full control.

The HDCam6ECP camera is shielded up to 200 V/m at a resolution of 2 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme Zoom is needed (30 times optical zoom).
The camera includes wide dynamic range (WDR) and digital noise reduction (DNR), that eliminates noise and thus is generating a distinct and clear image. The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Thus it is ideal for optical post processing e.g for automatic change or error detection during immunity testing. PONTIS offers a special software for automated surveillance.
The camera can be operated remotely by the PONTIS EMC HD camera controllers.
